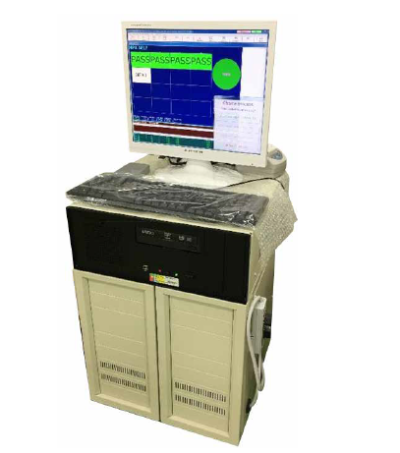

Product description
Test Point
- 256 pins ( Standard ) ̴2,048 pins (Max)
- Unlimited (The number of test step is limited by recorder)
- MAX 5 points
- MAX current limited : 20mA
- Short/Open Test : 1ms ̴/pin
- Component Test : 0.75ms ̴/step
TEST COVERAGE / METHOD
| Shot/Open | : Optimum detection on all pins |
| Resistor | : 0.1 ̴40.00MLow value resistor test 0.01 ̴4.00 (Resolution 0.01) |
| Capacitor | : 10pF ̴40mF |
| Inductor | : 10µH ̴40H |
| Transistor/Diode | : VF/0.1V ̴9.9V |
| Photocoupler | : ON/OFF functional Test |
| Digital Transistor | : Vce/0.01V ̴9.99V |
| Current Limit | : 10mA (Max 20mA) |
| Current Measurement | : 0.1µA ̴10mA (Bias 0.01V ̴9.99V) |
| Capacitor Polarity | : Pass / Fail |
| Function Test | : 0.1V ̴9.9V |
| D.CCV Test | : Bias 0µA ̴10,000µA (10mA) reading value 0.01V ̴9.99V |
